2.5 Ton to F-Ton Drag Link Forging Upgrade Kit for Jeep JK

Sku: FUS-FTJK-UPG-DL

Part Number:  FUS-FTJK-UPG-DL
Brand:  Fusion
Fits:  All models of 2007 - 2018 Jeep Wrangler JK and JKU

*Fusion F-Ton Forgings must be paired with Fusion 1.75" OD aluminum in order to maintain the lifetime warranty on bent or broken forgings.*

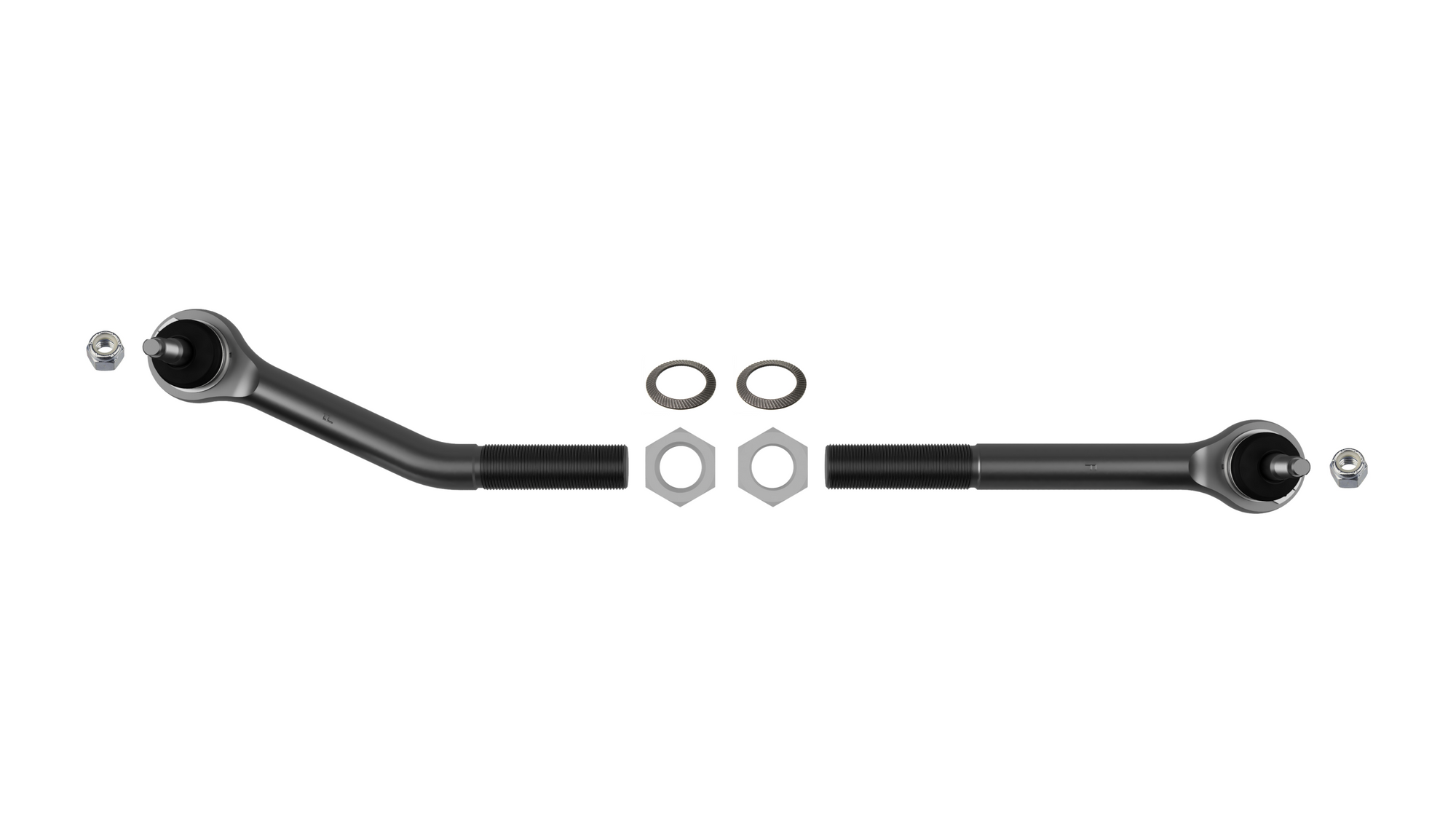

Looking to upgrade your 2.5 Ton Steering to the new F-Ton steering? This kit includes:

  • 2 new forgings preloaded with our TruTaper ball joints
  • 2 jam nuts
  • 2 serrated washers
  • 2 lock nuts

Three years of engineering, development and testing, with one goal: to be the best steering in the industry. Not only did we make it better and stronger in every aspect as compared to our 2.5 Ton steering, but we also LOWERED THE PRICE.

What does the “F” in F-Ton stand for? First and foremost, it stands for Fusion. As in, our own, not rebranded parts from another company. A few other things it stands for:

  • Fawk Ton: 17% stronger forgings than our previous 2.5 Ton Steering, and 25% larger ball joint ends as compared to OEM steering.
  • Fawk around and find out: The more you fawk around, the more you will find out about how strong this steering is. Manage to push it too far and find out about the lifetime warranty covering bent or broken forgings or aluminum.
  • Freedom: To drop F-Bombs on any rock that gets in your way.

Forgings


  • Forged Rod Ends: Made from a unique Medium Carbon Steel followed by a proprietary heat treat process to maximize strength while minimizing the probability of breaking.
  • Fully E-Coated: Forgings are fully E-coated, including the threads, reducing any chance of galvanic corrosion when used with aluminum.
  • 3" Forward Offset: Drag Link end 3" offset ensures ample clearance for track bar brackets
  • OEM Wheel Fitment: Fits OEM 17" wheels. No lift or different backspace wheel required.
  • Massive 1-1/4" Shank Ends: Go big so you can drive home.

Ball Joints

  • Fusion TruTaper: Ball studs for every application that match the OE taper vs. using a lower cost and weaker approach of a straight stud and an adapter. TruTaper studs are far stronger than straight studs with inserts.
  • Massive Ball Stud: 25% larger than OEM steering for maximum durability and designed to be the longest lasting in the industry.
  • Low Profile: More space between the tie rod and drag link for improved clearance on applications with a lot of up-travel.
  • Greaseable: For extended service life.

  • Anti-flop Inside: Both Tie Rod and Drag Link ends have built-in misalignment limitation in one direction to maximize steering stiffness and steering feel.
  • Sealed Ends: All rod ends are sealed with a heavy duty boot to keep the bad stuff out.

Optional Next Generation Rear 40 Spline Assembly.18 months of design, engineering and testing, resulted in the industries strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
- Forged chromolyspindles, hubs, and axle shafts
- Forged spindles have 4x more yield strengththan 35 spline spindles
- Hubs with over 80,000 psi yield strength to match the spindles
- Tone rings integrated into the hub
- Forged 4340 chromoly 40 spline axle shafts that are 55% strongerthan 4340 35 spline axle shafts


Fusion Elite Kingpin 60 Front Axle Standard Features:

  • 72" width for ideal steering geometry and tire clearance when running 40" tires. Other width available or call for custom width.
  • High clearance center section with custom low profile fabricated differential cover
  • Genuine Made in the USA Spicer® 10.1" (256 mm) ring and pinion gear
  • 3.5" diameter x 7/16" wall axle tubes
  • Lifetime Warranty US Made Chromoly axle shafts with 1480 solid u-joints
  • Massive, race inspired Kingpin inner knuckle Cs and outer knuckles, no ball joints to wear out
  • Fully machined springless steering arm attached with 6 ARP Studs
  • Steering arm upgrades available for full hydro or virtually any application
  • 1/4" plate axle bracketry designed to be the strongest in its class
  • 8 x 6.5 bolt pattern
  • Massive 13.25" brake rotors and dual piston calipers
  • Yukon Hardcore locking hubs
