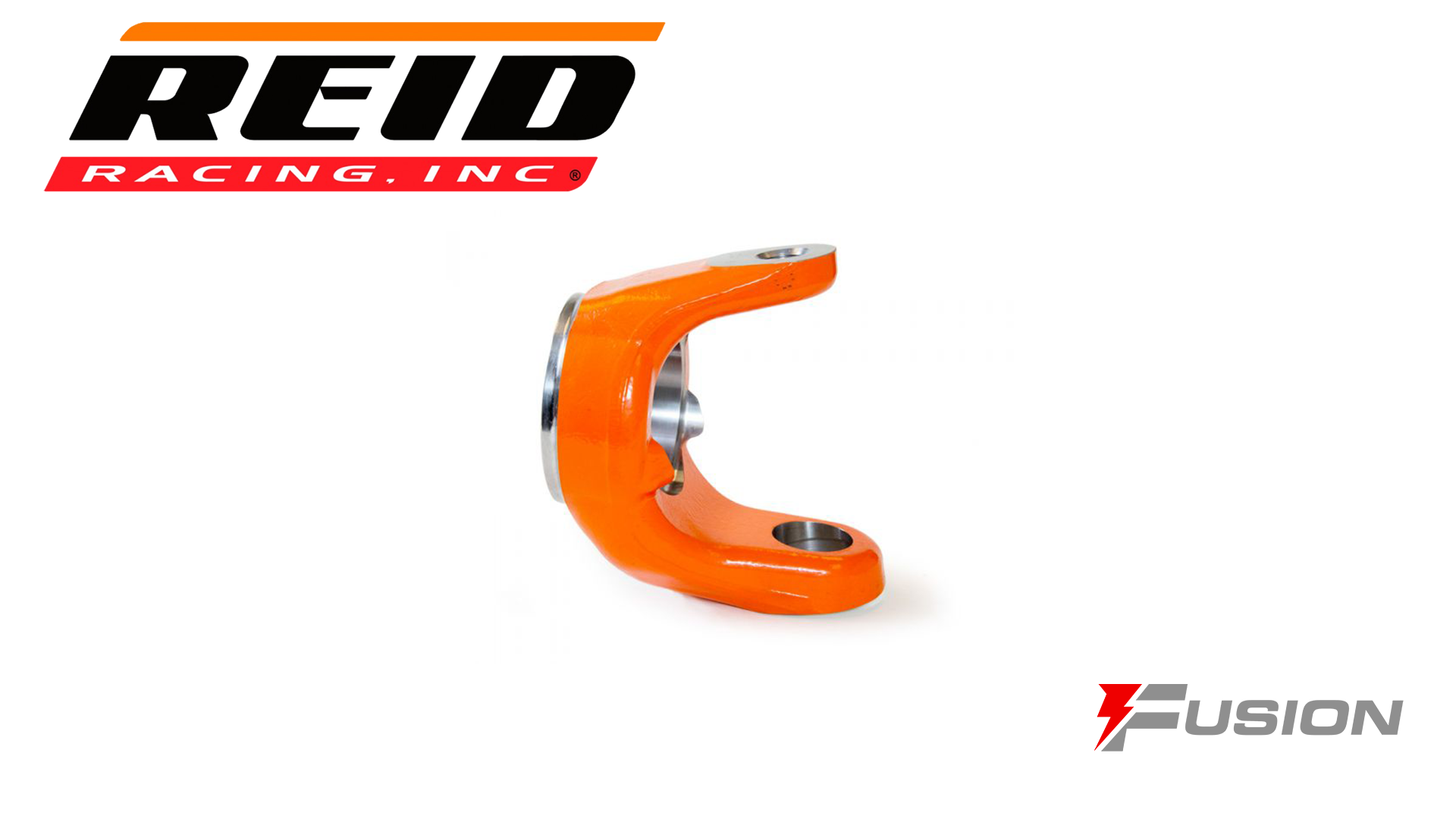

Kingpin Dana 60 Inner C

Sku: Reid-KP-Dana-C

Product Number: Reid-KP-Dana-C
Brand: Reid Racing
  • Sold individually - please specify part number (tube diameter) when ordering
  • The strongest Dana 60 Inner "C"s on the market
  • The only new FORGED kingpin Dana 60 "C"s on the market
  • Heat-treated for extra strength
  • Available for 3", 3-1/8" and 3-1/2" tube sizes
  • Can be custom bored (up to 3-5/8") using the fixturing ring machined on the "C"
  • Ideal for new builds, narrowing or hybrid axles
  • Forging based on the huge Dana 70 inner "C"
  • Much stronger than factory Dana 60 "C"s
  • Powder coated bright orange for long lasting looks
  • Interchangeable with all factory and aftermarket Kingpin Dana 60 components

Optional Next Generation Rear 40 Spline Assembly.18 months of design, engineering and testing, resulted in the industries strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
- Forged chromolyspindles, hubs, and axle shafts
- Forged spindles have 4x more yield strengththan 35 spline spindles
- Hubs with over 80,000 psi yield strength to match the spindles
- Tone rings integrated into the hub
- Forged 4340 chromoly 40 spline axle shafts that are 55% strongerthan 4340 35 spline axle shafts


Fusion Elite Kingpin 60 Front Axle Standard Features:

  • 72" width for ideal steering geometry and tire clearance when running 40" tires. Other width available or call for custom width.
  • High clearance center section with custom low profile fabricated differential cover
  • Genuine Made in the USA Spicer® 10.1" (256 mm) ring and pinion gear
  • 3.5" diameter x 7/16" wall axle tubes
  • Lifetime Warranty US Made Chromoly axle shafts with 1480 solid u-joints
  • Massive, race inspired Kingpin inner knuckle Cs and outer knuckles, no ball joints to wear out
  • Fully machined springless steering arm attached with 6 ARP Studs
  • Steering arm upgrades available for full hydro or virtually any application
  • 1/4" plate axle bracketry designed to be the strongest in its class
  • 8 x 6.5 bolt pattern
  • Massive 13.25" brake rotors and dual piston calipers
  • Yukon Hardcore locking hubs
